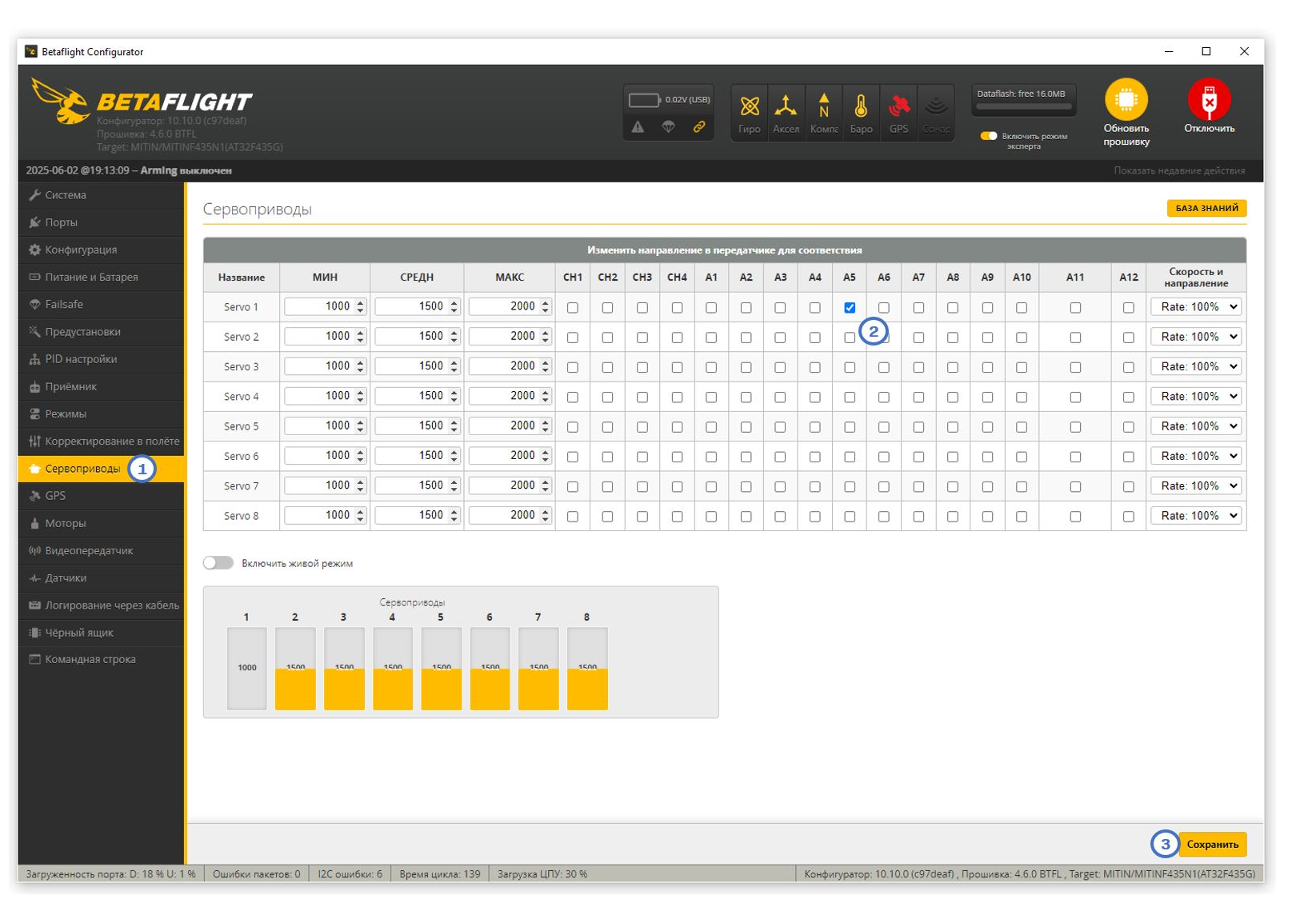

Servos

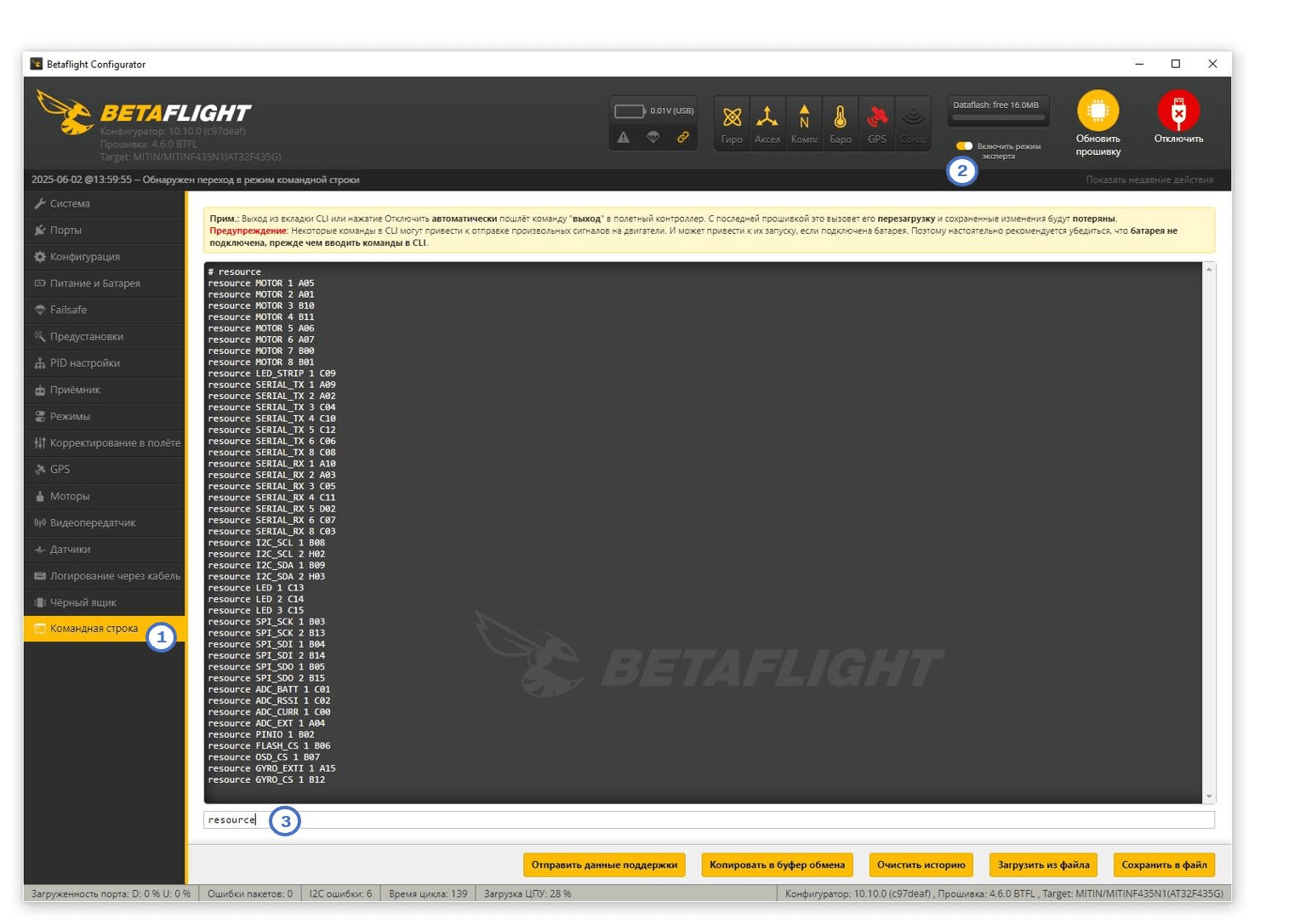

resource MOTOR 1 NONE
resource SERVO 1 A05
timer A05 AF1

resource MOTOR 2 NONE
resource SERVO 1 A01
timer A01 AF1

resource MOTOR 3 NONE
resource SERVO 1 B10
timer B10 AF1

resource MOTOR 4 NONE
resource SERVO 1 B11
timer B11 AF1

resource MOTOR 5 NONE
resource SERVO 1 A06
timer A06 AF1

resource MOTOR 6 NONE
resource SERVO 1 A07
timer A07 AF1

resource MOTOR 7 NONE
resource SERVO 1 B00
timer B00 AF1

resource MOTOR 8 NONE
resource SERVO 1 B01
timer B01 AF1

resource LED_STRIP 1 NONE
resource SERVO 1 C09
timer C09 AF3

resource SERIAL_TX 1 NONE
resource SERVO 1 A09
timer A09 AF1

resource SERIAL_TX 2 NONE
resource SERVO 1 A02
timer A02 AF1

resource SERIAL_TX 3 NONE
resource SERVO 1 C04
timer C04 AF3

resource SERIAL_TX 4 NONE
resource SERVO 1 C10
timer C10 AF2

resource SERIAL_TX 5 NONE
resource SERVO 1 C12
timer C12 AF3

resource SERIAL_TX 6 NONE
resource SERVO 1 C06
timer C06 AF3

resource SERIAL_TX 8 NONE
resource SERVO 1 C08
timer C08 AF3

resource SERIAL_RX 1 NONE
resource SERVO 1 A10
timer A10 AF1

resource SERIAL_RX 2 NONE
resource SERVO 1 A03
timer A03 AF2

resource SERIAL_RX 3 NONE
resource SERVO 1 C05
timer C05 AF3

resource SERIAL_RX 4 NONE
resource SERVO 1 C11
timer C11 AF2

resource SERIAL_RX 6 NONE
resource SERVO 1 C07
timer C07 AF3

resource I2C_SCL 1 NONE
resource SERVO 1 B08
timer B08 AF2

resource I2C_SDA 1 NONE
resource SERVO 1 B09
timer B09 AF2
